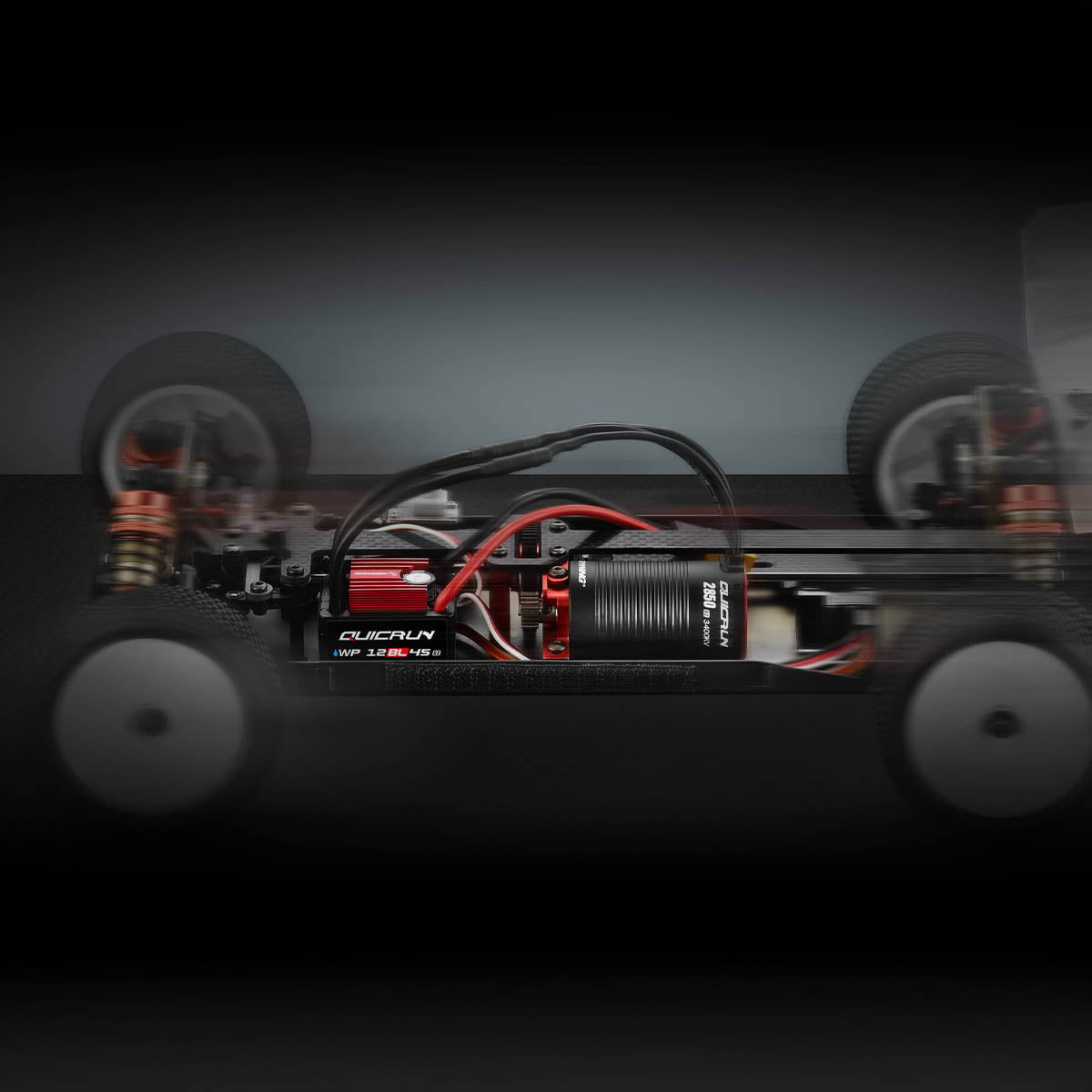

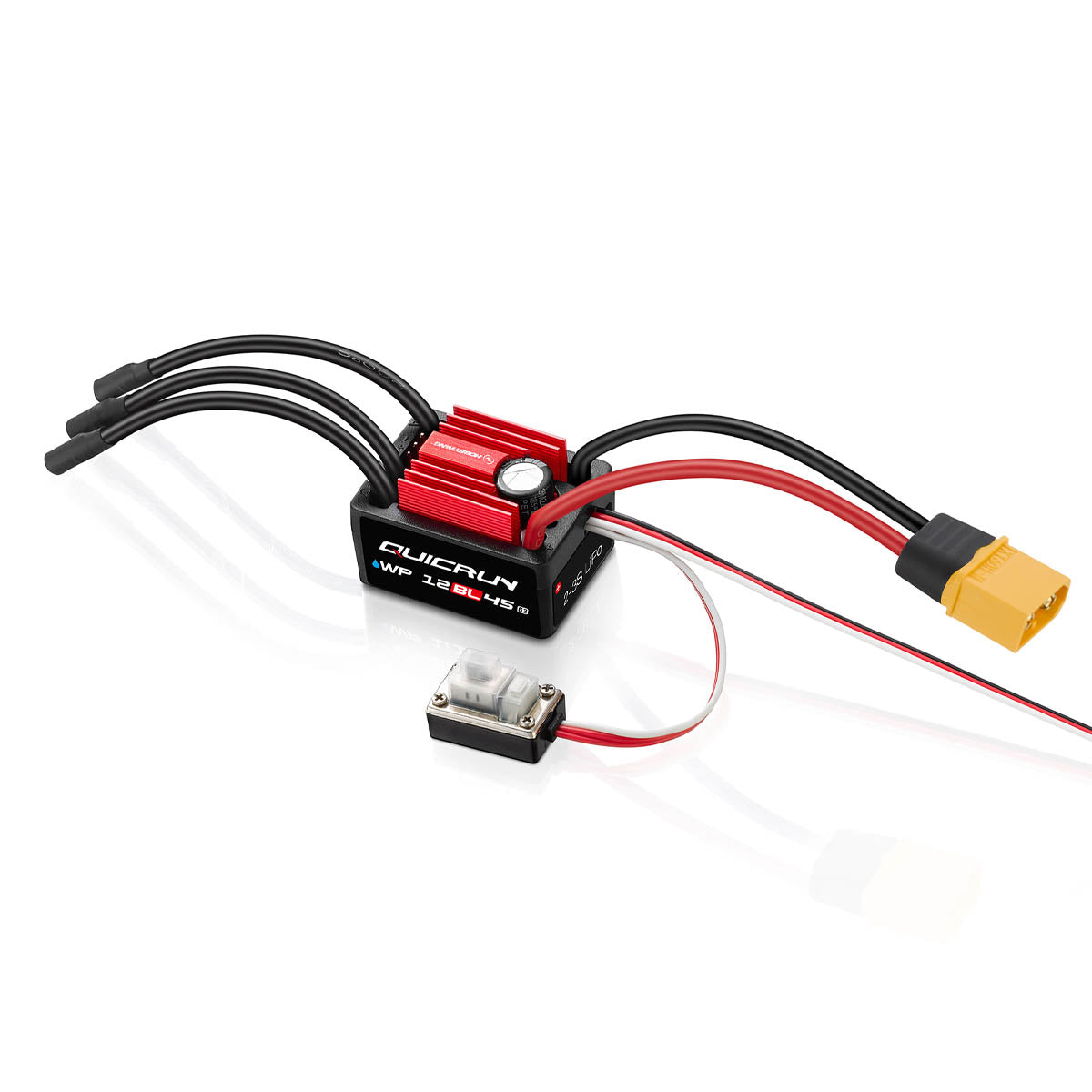

A higher output option that's as compact as the OEM ESC on the LC Racing 1/14 scale RTRs, but with a higher output BEC for high speed servos, higher motor Kv compatibility, and easy programming.
The ESC can be programmed by using the built-in SET button, as well as using the optional Hobbywing Multifunction LCD Program Box PRO G3 (30502002) or Hobbywing LED Program Card (30501003), sold separately.
Motor Compatibility:
| Type | Brushless |
| Sensor | Sensorless |
| Kv Limit | 2S: ≤ 6000 3S: ≤ 4000 (28XX size motor) |
Electrical Specifications:
| Continuous/Peak Current (A) | 45/200 |
| Battery Input | 2S or 3S LiPo |
| BEC Output | 6V/7.4V @ 4A |
| Program Port | Yes |
| External Switch | Yes |
| Motor connectors | 3.5 mm bullet (female) |
| Battery connector | XT60 |
Physical Specifications:
| Dimensions (mm) |
39 x 29 x 26 |
| Weight (g) |
57 |
Additional Notes:
| Fan |
None (can be added via programming port) |
| Waterproof |
IP67 rated |
